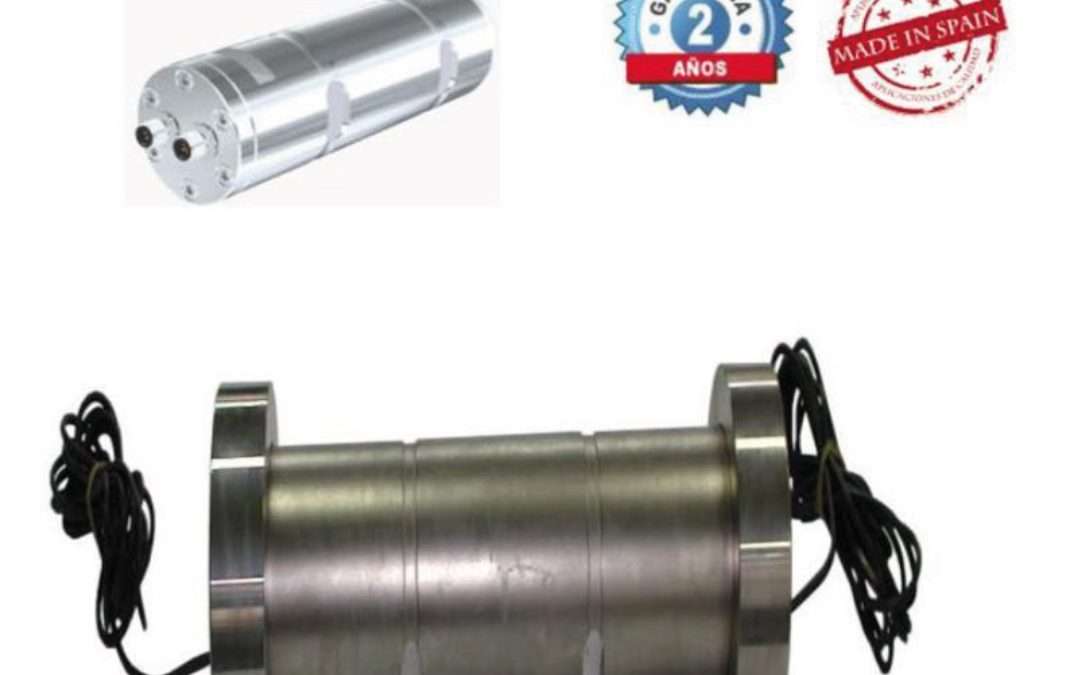

Load Cell Pin type Double cut DKBulon
Double cut Load Cell DKBulon, load Pin Manufacturing for any capacity and dimension.
The Load Pins allow to measure efforts in any point where an axle is placed, without making relevant mechanical changes.
We have considerable experience in making tailored sensors to suit all types of works and applications. Redundant load Pins, Stainless, waterproof, harsh.

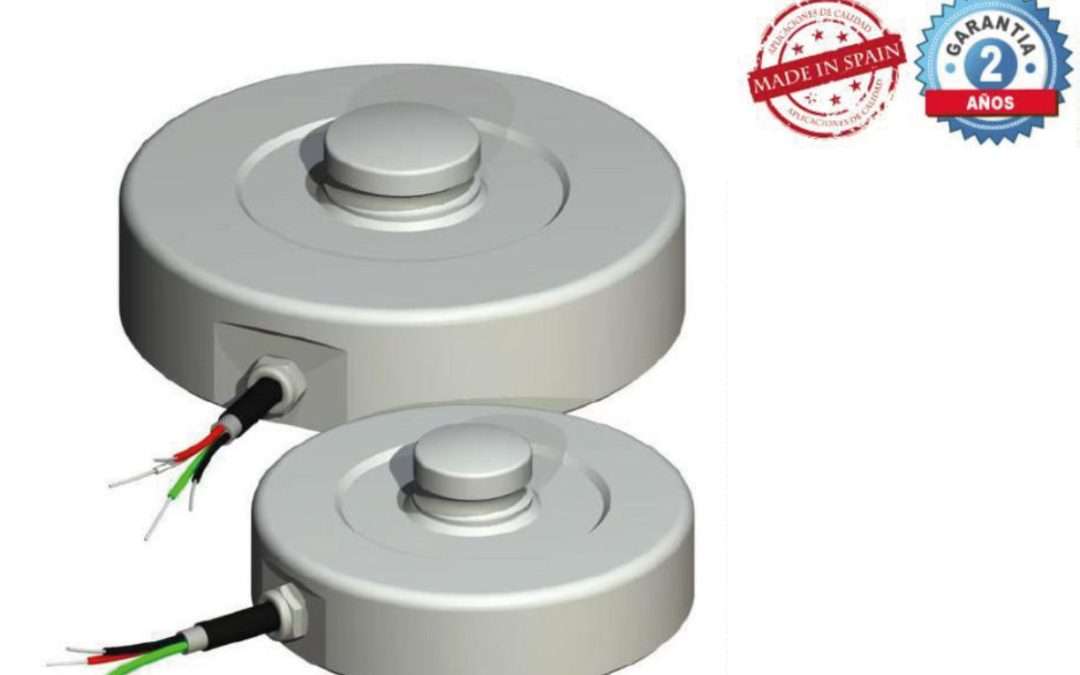

Load Cell Compression DKBPv
CAPACIDAD /CAPACITY : 1, 2, 3, 4, 5, 10, 15, 20, 30, 40 ton.
Load cell – compression. DKBP, low profile design, made of alloy steel, finished in chemical nickel, with anti-corrosion treatment
Note: This cell can be supplied with bottom cover.
Load Cell Traction + Compression DKCTR
CAPACITY: 0.75, 1, 1.5, 2, 3, 5 Ton.

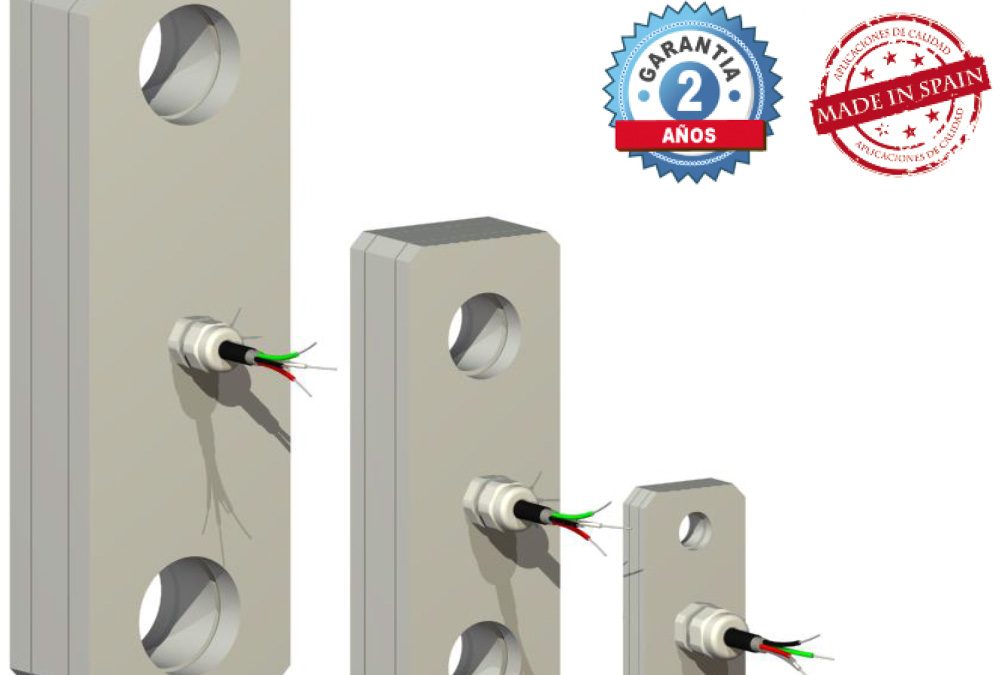

Load Cell Traction + Compression DKSW-4058
CAPACITY: 0.15, 0.50, 0.75, 1, 1.5, 3, 5, 10, 12.5, 15 Ton.
Load Cell Traction DKGH
Technical Data
Sensitivity: 2mV/V
Sensitivity tolerance adjustment: 0.1%
Zero tolerance adjustment: 1% F.E.
Excitation voltage: ≤ 12V
Non- linearity: <0.015% F.E.
non-repeatability: <0.011% F.E.
Error combinado <0.027% F.E.
hysteresis 0.009% F.E.
Fluency in 30 minutes <0.025% F.E.
Temp. effect in sensitivity <0.023% F.E.
Temp. effect at zero <0.016%/5ºC
Compensated temperature range -10ºC/+40ºC
input resistance 380Ω±10Ω
output resistance 350Ω±3Ω
isolation resistance (V.Test=100V) >5000 10⁵Ω
peak workload 150% F.E.
Load limit without losing features 200% F.E.
breaking load >300% F.E.
flexible cable 4×0.25mm
Protection IP 66
Anti-corrosion treatment of chemical nickel.
